Valves Butterfly Valves
Producing sustainable solutions and developing integrated systems is our specialty. We are the lifeline for buildings with our pumps that are used for hot and cold circulation and ventilation systems. We have a selection of products that meet the demands of changing conditions and regulations. We provide maximum energy efficiency while considering nature and economy.
|

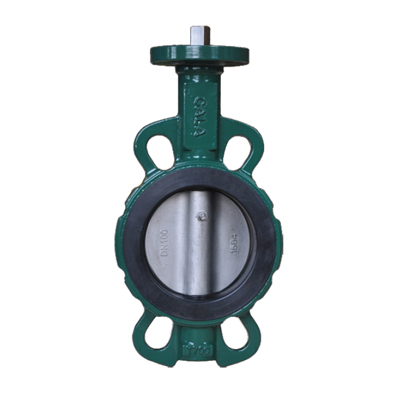

Wafer Rubber Lining Butterfly Valve |
||
| GENERAL INFORMATION Vavle Standard: Comply with ISO 5752 / BS 5155 / BS EN593 / MSS SP-67 / API 609 Pressure Temperature Ratings Working Pressure 16bar / 25bar Testing Pressure Shell: 24bar / 37.5bar Seal: 17.6bar / 27.5bar Working Temperature -20°C to 110°C EPDM Seat -10°C to 80°C NBR Seat Suitable Media Water, Oil & Gas |
|

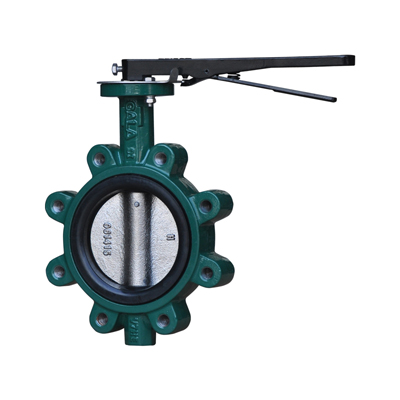

Lug Butterfly Valve |
||
| GENERAL INFORMATION Valve Standard: Comply with ISO 5752/BS 5155/BS EN 593/MSS SP-67/API 609 Pressure Temperature Ratings: Working Pressure: 16bar/25bar Testing Pressure: Shell: 24bar/37.5bar Seal: 17.6bar/27.5bar Working Temperature: -20°C to 110°C EPDM Seat -10°C to 80°C NBR Sea Suitable Midea: Water, Oil & Gas |
|

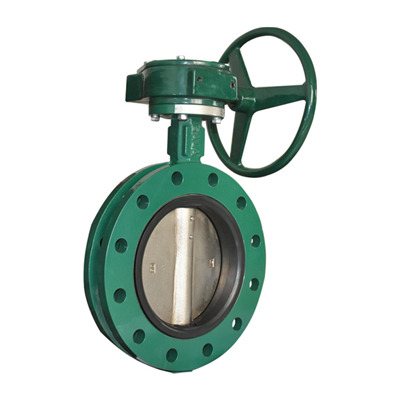

U Type Flange Butterfly Valve |
||
| GENERAL INFORMATION Valve Standard: Comply with ISO 5752/BS 5155/BS EN 593/MSS SP-67/API 609 Pressure Temperature Ratings: Working Pressure: 16bar/25bar Testing Pressure: Shell: 24bar/37.5bar Seal: 17.6bar/27.5bar Working Temperature: -20°C to 110°C EPDM Seat -10°C to 80°C NBR Sea Suitable Midea: Water, Oil & Gas |
|

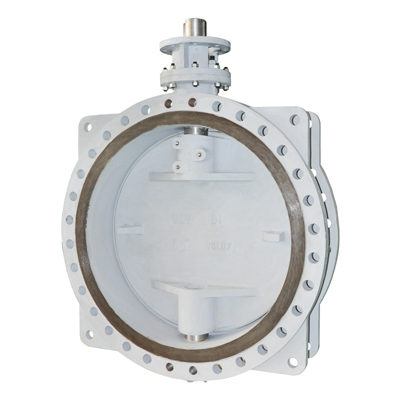

AWWA Double Eccentric Butterfly Valve |
||
| GENERAL INFORMATION Valve Standard: Comply with AWWA C504 Pressure Temperature Ratings: Working pressure 16bar Testing Pressure Shell: 24bar Seal: 17.6bar Working Temperature -20°C to 110°C EPDM Seat 14°F to 176°F NBR Seat Suitable Midea Water, Oil & Gas |
|

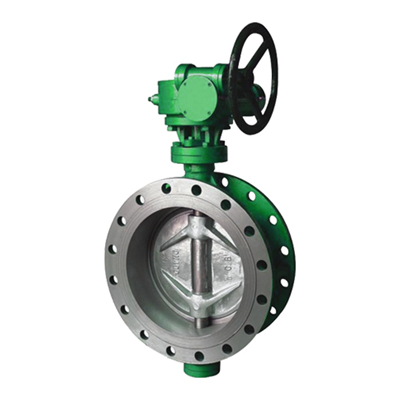

Triple Eccentric Butterfly Valve |
||
| GENERAL INFORMATION Valve Standard: Comply with ISO 5752/BS 5155/BS EN 593 Pressure Temperature Ratings: Working pressure 10bar/16bar/25bar/63bar Testing Pressure Shell: 15/24/37.5/94.5bar Seal: 11/17.6/27.5/44/69/3bar Working Temperature -196°C to 550°C Suitable Midea Water, Oil & Gas |
